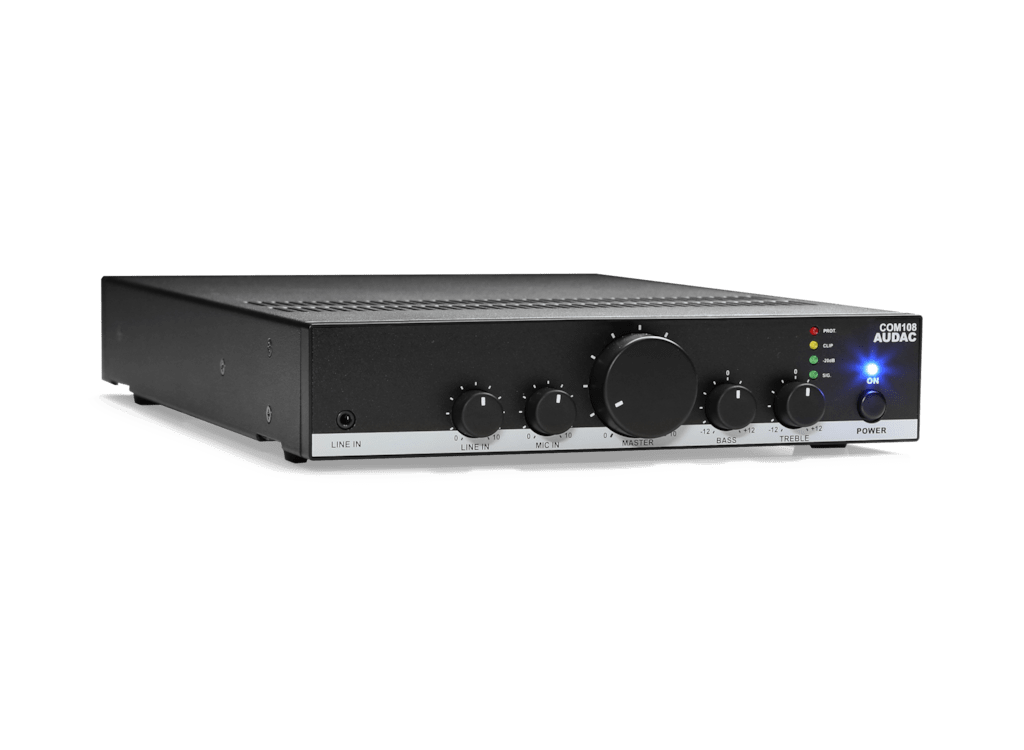

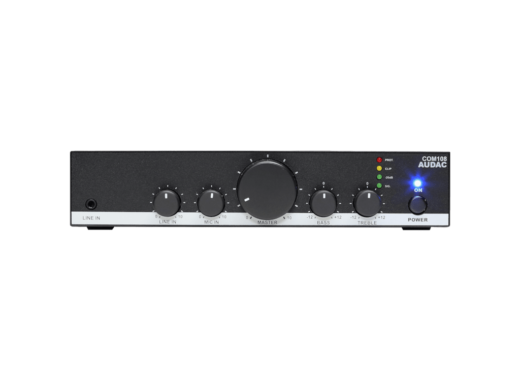

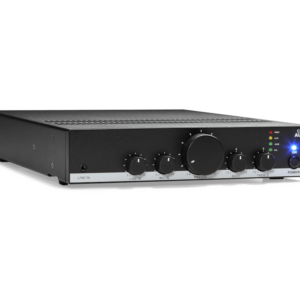

The compact and simple design allows installation in any location and operation through any possible user.
The amplifier is designed using Class-D amplifier technology and delivers an output power of 80 Watt to constant voltage (100V and 70V) or low impedance (4 Ohm) audio systems. A switch mode power supply allows compatibility with a wide variation of mains voltages for global compatibility.
A stereo line input allows connection for a wide variation of audio sources such as media players, radio tuners, internet audio players, … and many more. A balanced mic / line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled, and compatibility with voice file players is guaranteed by the wide gain adjustment possibility (0 dB – +50 dB).

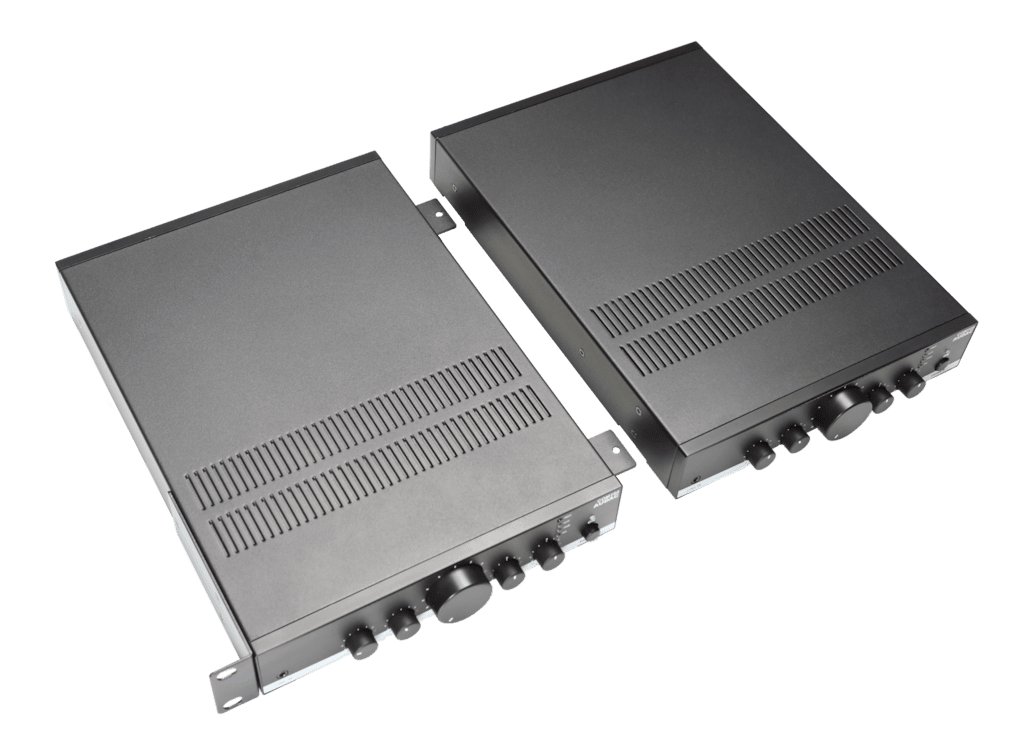

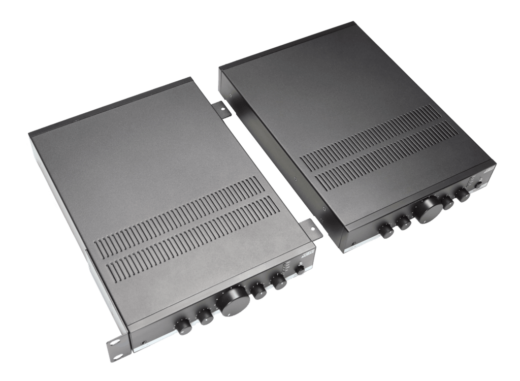

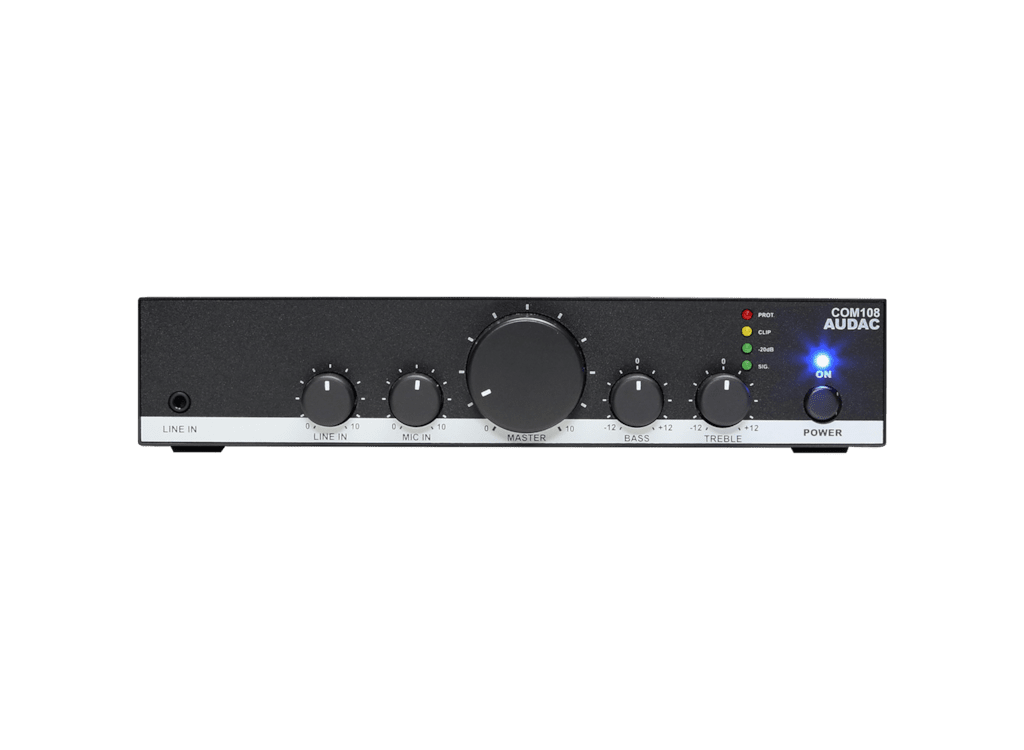

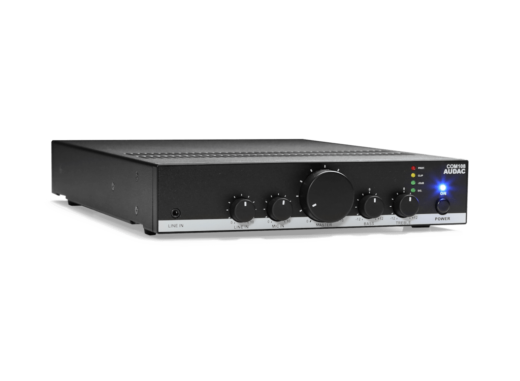

The COM108 is a table-top standing device, while rack mounting in 10.5″ or 19″ equipment racks is possible using an optionally available mounting set (MBS310).
|Signal / Noise||> 90 dB|
|THD+N (@ 1 kHz)||< 0.5% (1/2 Rated Power)|
|Crosstalk (@ 1 kHz)||> 70 dB|
|Inputs||Priority mute contact|
|Operating temperature||0° ~ 40° @ 95% Humidity|
|Frequency||Response (± 3 dB)||20 Hz – 20 kHz|

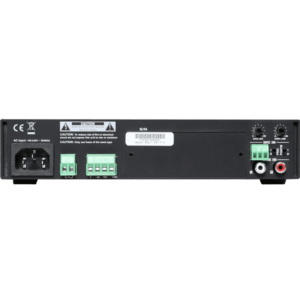

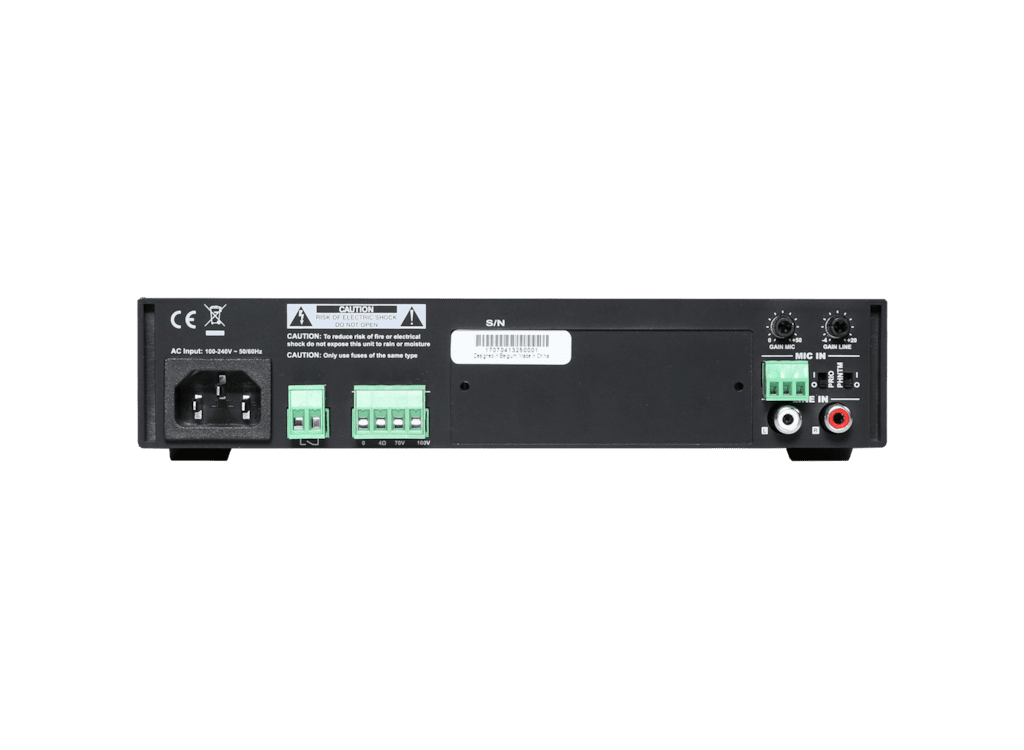

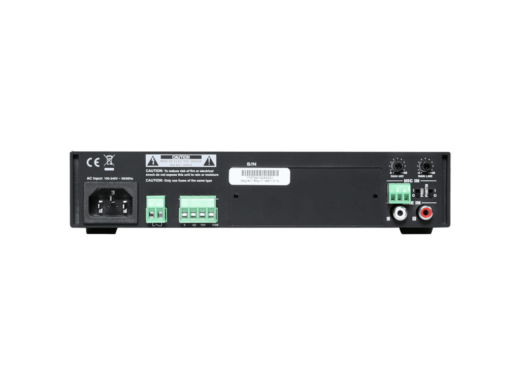

|Outputs||Connector||4-pin Euro Terminal Block (Pitch – 5.08 mm)|
|Voltage / Impedance||100/ 70 V / 4 Ω|
|Protection||Amplifier||DC Short circuit|
|Inputs||Balanced Microphone||Sensitivity (1W/1m)||-0 dB ~ +50 dB|
|Connector||3-pin Euro Terminal Block (Pitch – 3.81 mm)|
|Type||1 x Balanced Microphone|
|Unbalanced Stereo||Connector||RCA / 3.5 mm Jack|
|Sensitivity (1W/1m)||-4 dB ~ 20 dB|
|Power||Supply||Operating||100 ~ 240 V AC / 50 ~ 60 Hz|
|Inputs||Balanced Microphone||Phantom Power||15 V DC|
|RMS Power||@ 4 Ω||1 x 80 W|
|Dimensions||217.5 x 43.7 x 300 mm (W x H x D)|
|Mounting||1/2 19” / 1 HE or tabletop|
|Accessories||Optional||19” Rackmount adapter|
