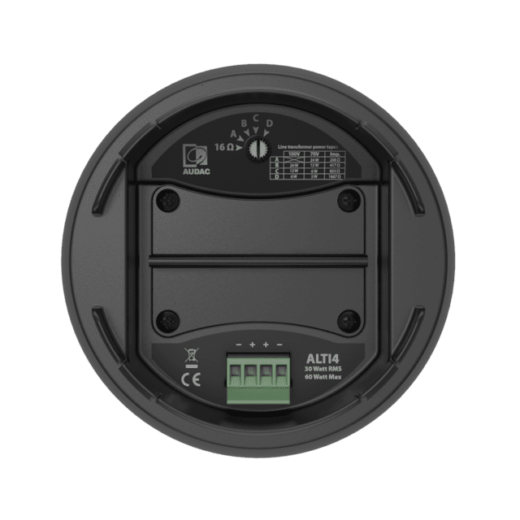

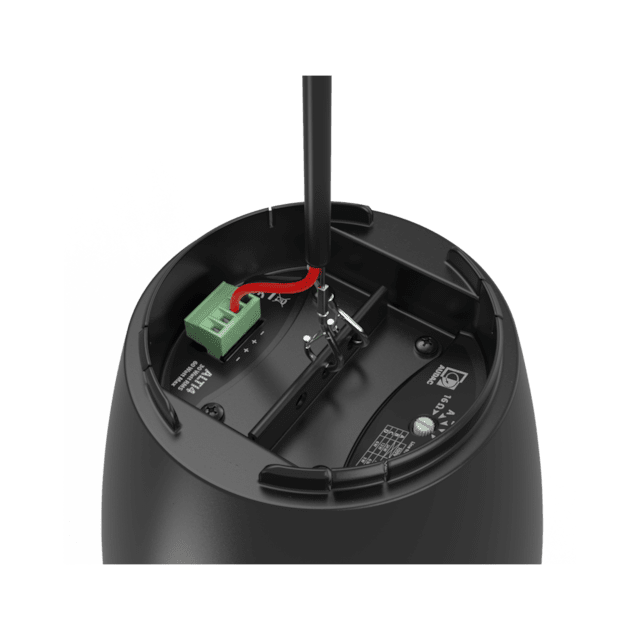

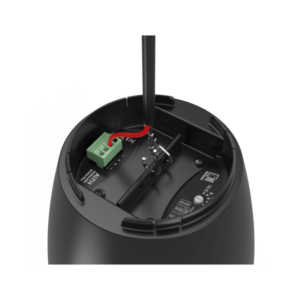

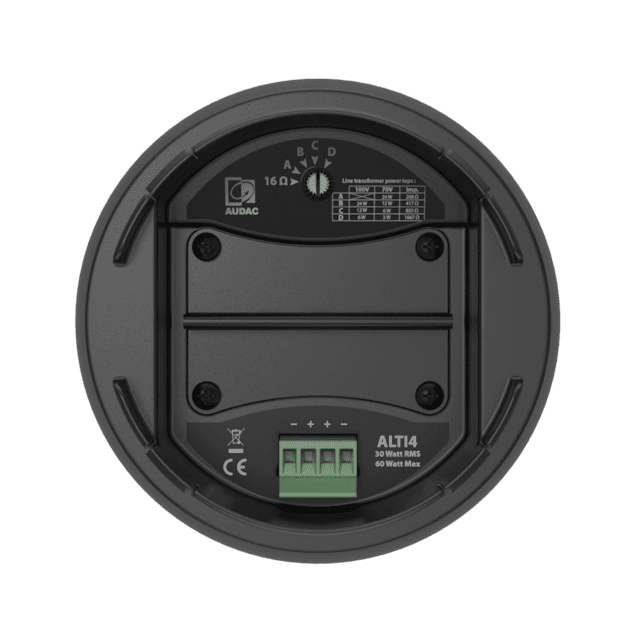

The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved. Connections are made through a terminal block connector behind the rear cover, accompanied with a power tap selector switch for the tapping of a 70V/100V line transformer with tappings for 60W, 30W, 15W and a 16 Ohm bypass connection.
VARIANTS

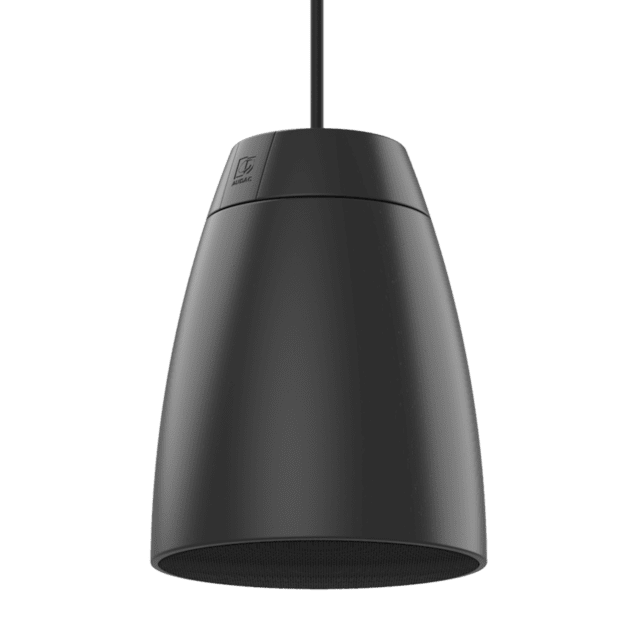

- ALTI6/B – Black version

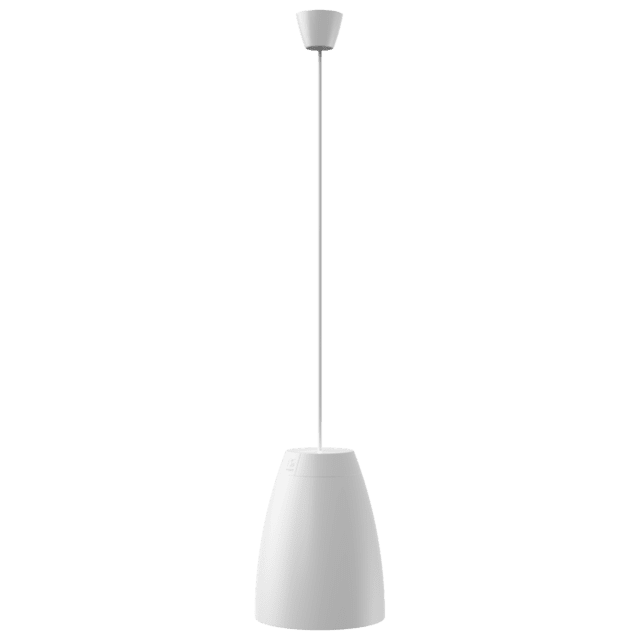

- ALTI6/W – White version
SYSTEM SPECIFICATIONS | ||||
---|---|---|---|---|
Speaker type | 2-way coaxial | |||
Max. Power | 120 W | |||
RMS Power | 60 W | |||
Impedance | 16 Ω | |||
Connectors | 4-pin Euro Terminal Block | |||
Sensitivity (1W/1m) | 83 dB | |||
Line Transformer Tappings | 1 | 83 Ω – 100 V / Not used – 70 V / 60 W | ||
2 | 167 Ω – 100 V / 60 W – 70 V / 30 W | |||
3 | 333 Ω – 100 V / 30 W – 70 V / 15 W | |||
4 | 667 Ω – 100 V / 15 W – 70 V / 7.5 W | |||

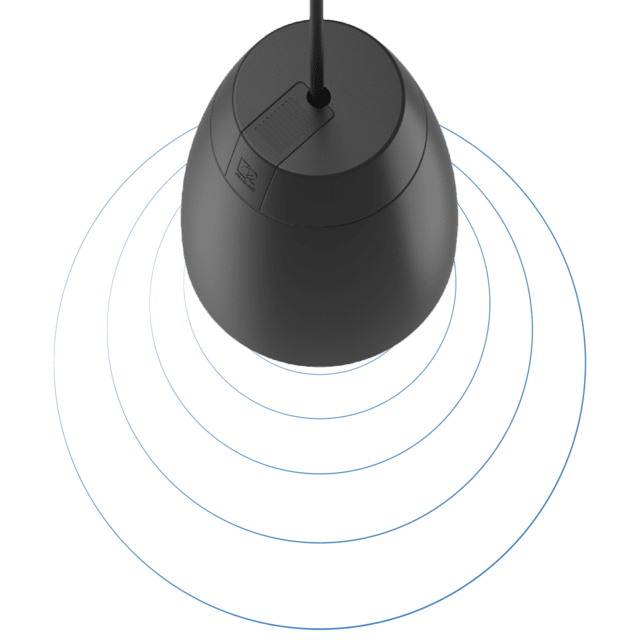

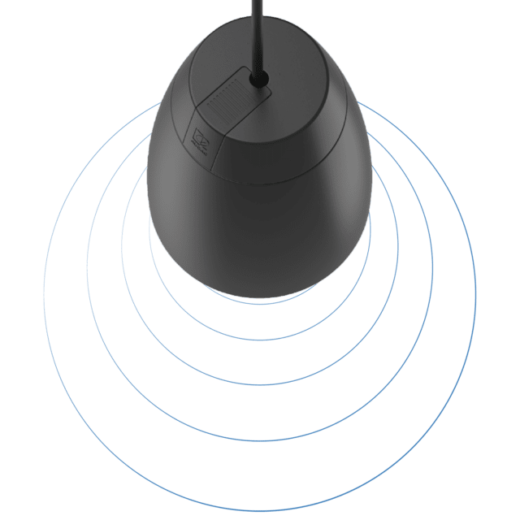

Dispersion | Conical | 115° (average 500 Hz to 5 kHz @ -6 dB) | ||
Sound Pressure (Max. W/1m) | @ 16 Ω | 101 dB | ||
Frequency | Range (-10 dB) | 61.5 Hz – 20 kHz | ||
Response (± 3 dB) | 75 Hz – 17 kHz |
PRODUCT FEATURES | ||||
---|---|---|---|---|
Dimensions | 230 x 302 mm (Ø x H) | |||
Connection cable length | 3.5 m | |||
Construction | Polypropylene | |||
Front finish | Aluminium grill | |||
Mounting & handling | Dual snap hook and dual Gripple™ hanger | |||
Accessories | Included | Connection cable with dual copper and dual steel cores | ||
2 Gripple™ hangers |
