Compact yet versatile design
The product design reflects the elegant, yet compact and easy to use features. Normal CAT5e connection ensures fast and easy to build any sized meeting occasions, conference unit features a graphical interface operating area, including lighting reminder, anyone can get started quickly. Easy to install, user-friendly to use, and is designed to ensure higher productive meetings.
Excellent sound performance
Advanced voice processing technology, with the unique design of the microphone head, this unit can be accurate pickup and restore the human voice through a high-quality built-in speakers or an external PA system, original AUDIO-LINK digital ring network technology, Automatic Gain Control Volume(AGC) / automatic frequency control(AFC) technology help reach higher volume without triggering the howling effect, ensures each word spoken is well understood.
High tech intelligence platform
Timing function, overtime reminder, voting results multi-platform synchronization, network control and meeting management, conference Smart reservation, worldwide firmware real-time updates, the integration of IT technologies ensures smart conferencing platform, the CLEACON series is one of them.
Complete easy-handling management

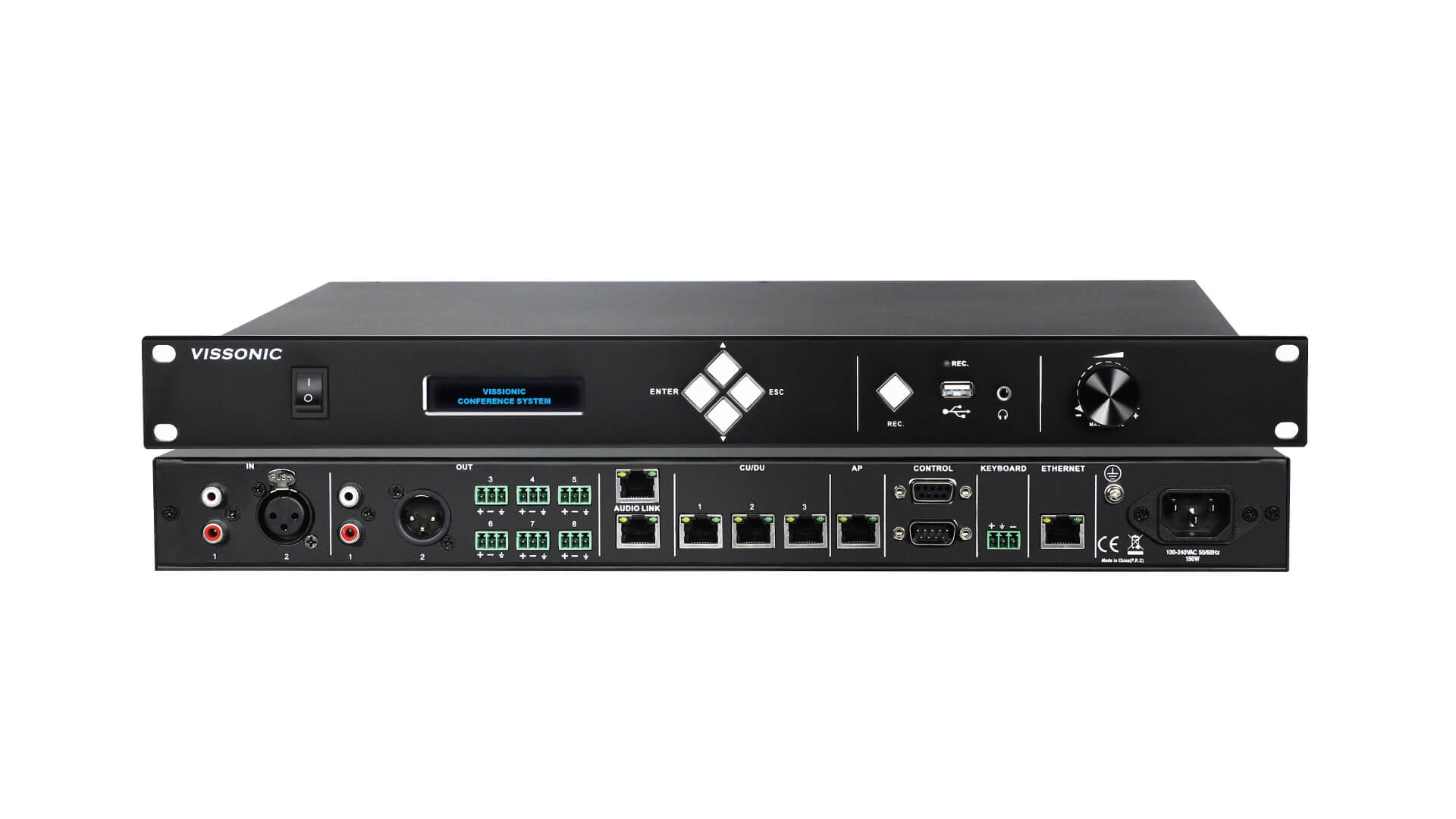

The Central Unit is the center of the system which provides power to the whole discussion units, controls the cameras and links to other third party devices. The 1U compact design is easily to put anywhere while keep a low profile in meeting circumstances.
Simple control with convenient recording
We try to use less buttons to streamline the operation, and a LCD screen helps you monitor real-time action obviously. The USB slot enable it record every important meeting discussion, to file up every contents simply.
● The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing
● One CAT5e cable to transmit up 64 channels audio and other signals.
● All microphone units support audio, ID independent output. Working with voice recognition system to achieve voice role separation.
● High-fidelity sound quality by lossless audio transmission technology, 48K audio sampling rate and 20Hz ~ 20KHz frequency response
● A single conference controller can realize the independent control and merging of 4 conference rooms, can handle the cascade of multiple conference controllers to realize the merging and separation of larger conference rooms (Optional).
● “Hand-in-Hand-Loop-Network” connection makes the system always working perfectly no matter changing discussion unit or having any malfunctioned units
● The sensitivity of the unit microphone and 8 segment equalizer EQ adjusted independently.
● Conference controller can output 16 segment equalized EQ to achieve sound field adjustment; pressure limit, which can recognize the noise gate passed by human voice. AGC automatic volume gain control; AFC automatic feedback suppression and auto-mix technology.
● Sound output by separated zones function, each zone is automatically adjusted according to the volume of the position of the microphone, achieve longer distances pickup without whistle.
● Echo cancellation, remote two-way real-time call with another conference controller or another third-party video conferencing terminal.
● USB recording, controller monitor, advanced noise cancellation technology to realize clearer recording.
● System date, time management, and support count-down speech.
● Optional DANTE output module with other DANTE equipment used.
● Can drive 2x120W POE speaker, through extension main unit, support up to 16 POE speakers.
● Compliance with IEC 60914, GBT 15381-94
● Connect with VIS-EXM full-digital extension main unit, it can expand to 5200 discussion units
● “Hand-in-Hand-Loop-Network” connection and the system assigned to each unit independently ID to avoid ID conflict.
● Only wired discussion units can connect to the controller, fast and easily to adding delegate of meetings.
● 2 channel audio input, XLR or RCA type, for local audio input or remote video-conferencing input.
● Maximum 8-channel audio output, XLR, RCA or Phoenix type, can be connected to simultaneous interpretation output or partitioned output.
● Add the audio input box, the system can be connected to other condenser microphones or dynamic microphones, more choices for users.
● Built-in multi-way internal communication function.
● TCP/IP connection between controller and PC
● RS232 central control, realize microphone switch, priority, volume and other controls.
● RS232 or RS485 to send the PELCO/VISCA protocol to realize camera auto-tracking function.
● Hot plug-and-play, and auto-recovery function.
● Wide range of voltage from 100V~240VAC
● Without using PC software, our conference controller still owns following settings:
Limit on the number of speaking persons: By Setting the number of active units at the same time (Number is 1/2/4/6/ units), supports up to open 32 wired microphones in full-on mode.
“OPEN” Free for all, limited by the active units setting by controller，”VOICE” Can activate MIC by detecting sound without press button, “OVERRIDE” First in First out, “APPLY” To apply then to speak, “PTT” Press to speak(Optional),”ALL” Full open mode(Optional).
Voting function: Approve/Abstain/Object
Chairman unit has priority to close all other units or mute them temporarily
Chairman unit can consent the application for speaking from delegate
Simultaneous language interpretation
● With PC software to add more ways of voting:
● By using RFID card to identify, can realize voting with names.
Model for Order
VIS-DCP2000-D……………… Full digital network DSP conference processor
