|Depth||13.75 in / 349.25 mm|
|Height||Without Feet: 3.5 in / 88.9 mm|
|Width/Diameter||19 in / 482.6 mm|
|Shipping Weight||35.4 lbs / 16.06 kg|
|Carton Height||8.5 in / 215.9 mm|
|Carton Length||23 in / 584.2 mm|
|Carton Width||19.75 in / 501.65 mm|
|Certifications||CE, RoHS, UL60065, ETL-C/US, FCC|
|Input Impedance||20K Ω Unbalanced, 10K Ω Balanced|
|Power Requirements||120V: 3A @ 8 ohms 5.5A @ 4 Ohms|
|Voltage Gain||33 dB|
|Frequency Response (± 3 dB)||30 Hz – 35 kHz +/- 0.5 dB|

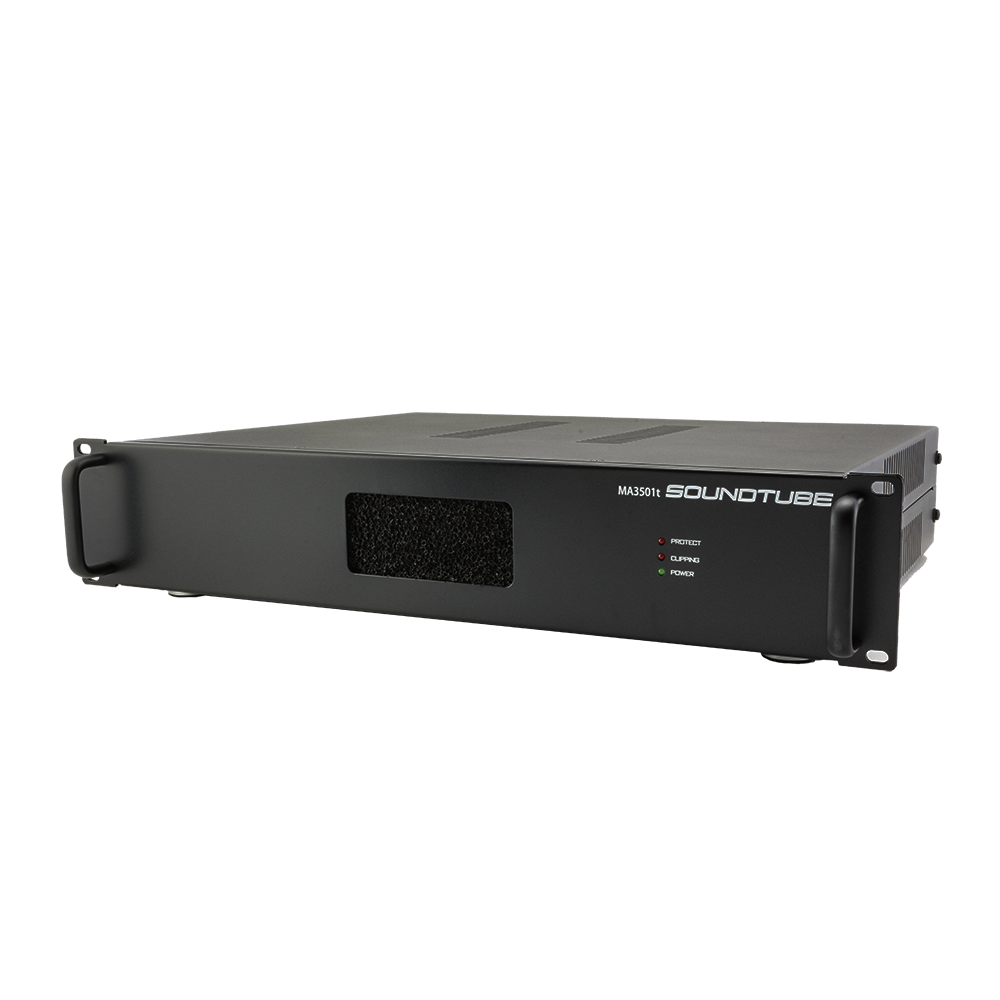

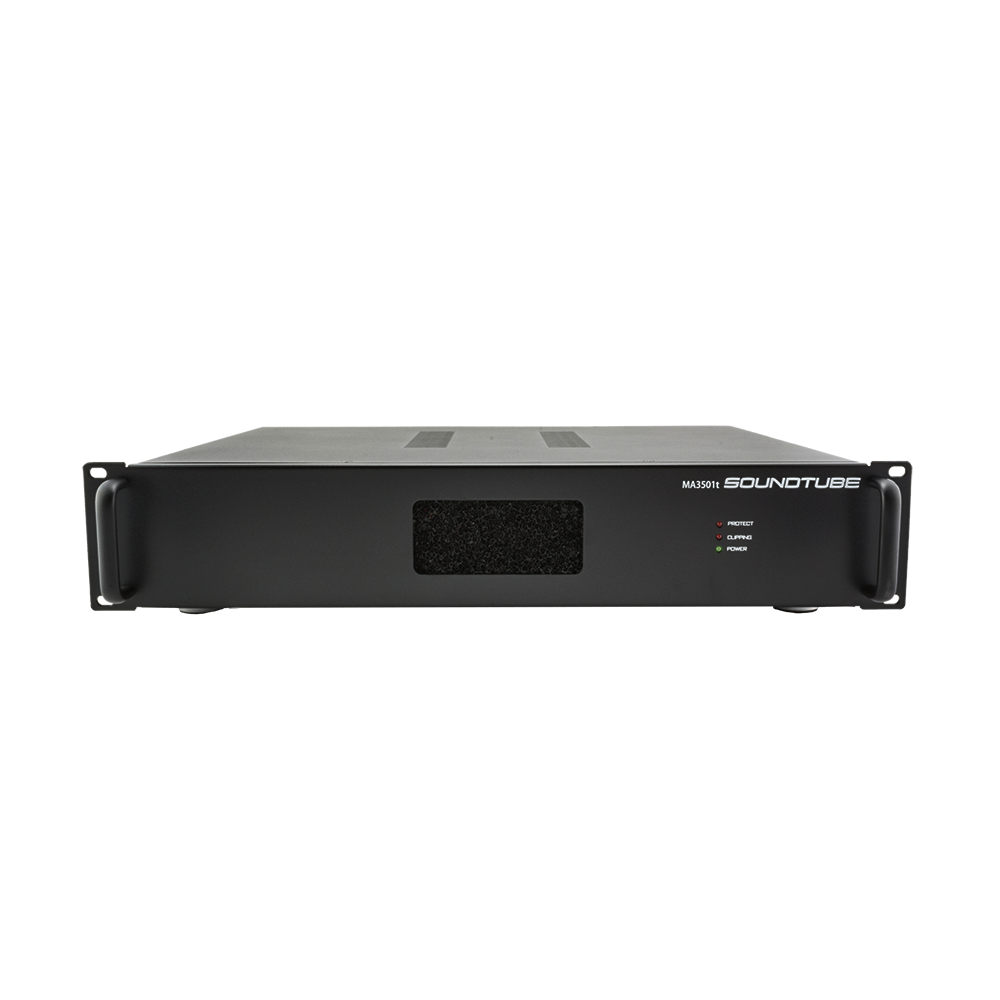

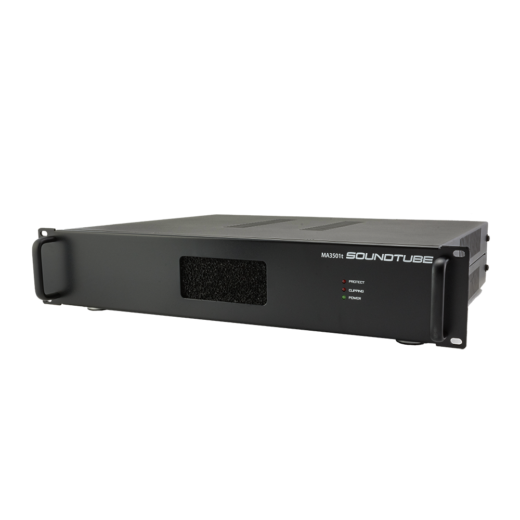

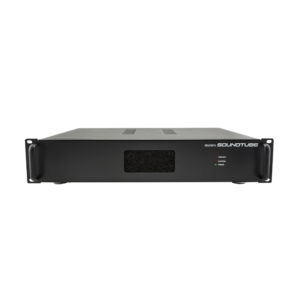

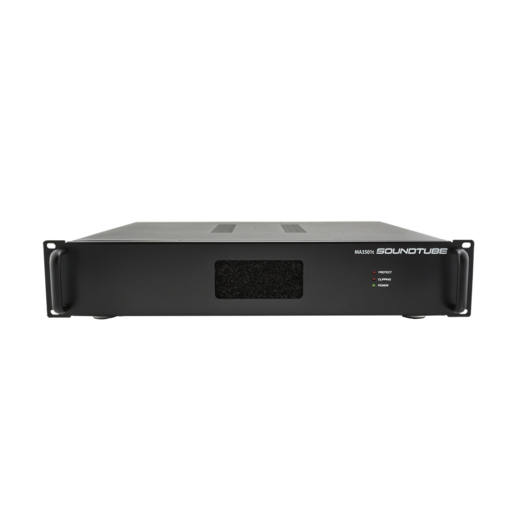

SoundTube 13″x19″ 350 Watt Amplifier
Designed for distributed sound applications, the MA3501t amplifier incorporates large toroidal power and audio output transformers for high power handling, and offers transformer taps at 25, 70 and 100 volts plus bypass mode. It delivers 350 watts into 4ohms, 25V, 70V and 100V; and 225 watts into 8 ohms, with a frequency response of 30 Hz 35 kHz +/- 0.5 dB. Inputs are RCA (unbalanced) and Euroblock (balanced) connectors, with outputs to speakers via Euroblock connectors. A selectable limiter is provided, along with a 3 position subsonic filter (40Hz, 60Hz or off); auto music sensing and a 12V trigger option are provided for remote activation / deactivation. Switchable 40/60 Hz High Pass Filter crossover.

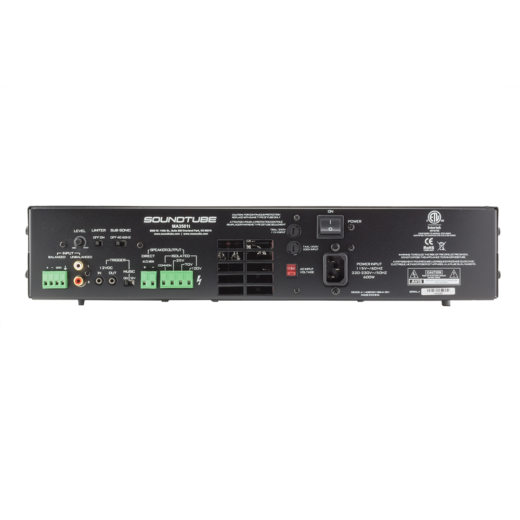

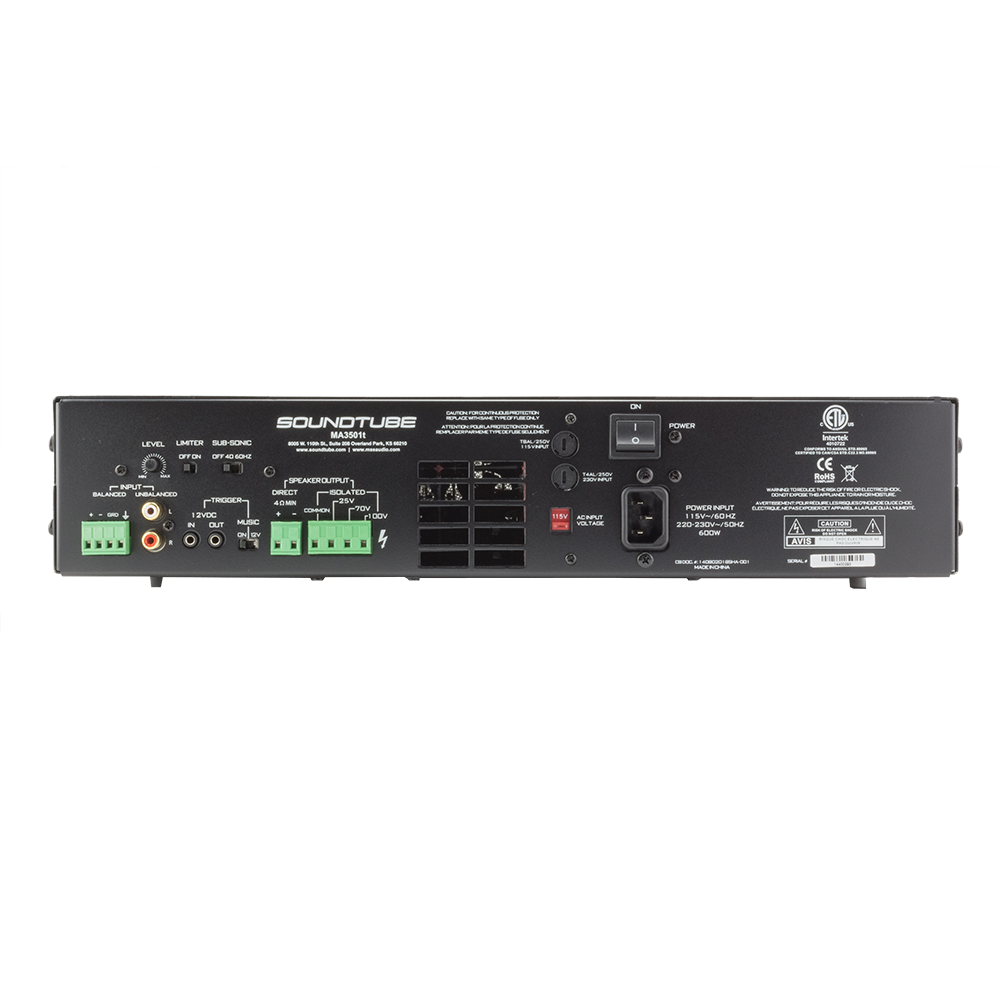

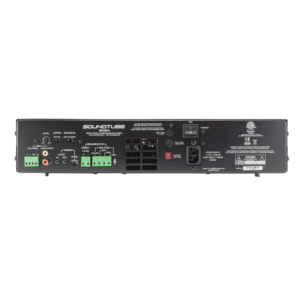

The unit occupies two rack units; it is fan-cooled and offers overload, short circuit and heat protection along with peak output protection. All controls for the MA3501t are presented on the rear panel to deter tampering with levels or settings. The MA3501t is for use with SoundTube and Rockustics products. When in use in conjunction with outdoor speakers, the amp should be placed inside or in a weatherproof concealment.
