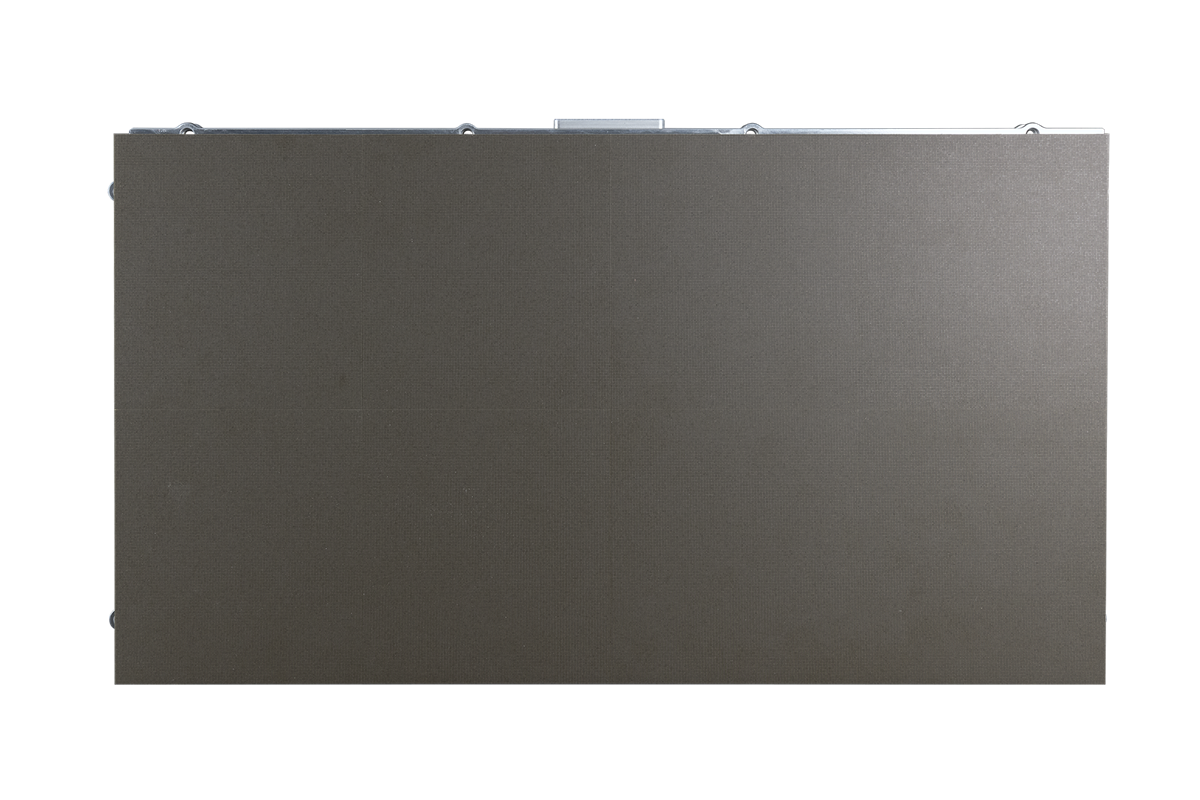

The new XT0.9-Q further expands Barco’s indoor high-resolution LED tiles portfolio. The 27” inch tiles with a pixel-pitch of only 0.9 mm delivers superior seamless results, and includes all necessary features to maximize the reliability of your LED wall. Leveraging the IMD (4-in-1) technology, the XT0.9-Q brings high-resolution images to any environment.
Superior viewing experience
With each tile having a 16:9 aspect ratio, it is child’s play to create native Full HD or UHD screens. This allows displaying video in the most common formats in full, without compression or unused canvas. What’s more, the camera-supported seam correction technology makes sure tiles easily align, creating a single seamless canvas viewing experience.
Easy to install and maintain
Because these LED tiles are designed for wall mounting, they are fully accessible from the back and/or the front – creating a shallow depth. The improved robustness and the Assisted Module Extraction makes sure the tiles can be easily removed, for maintenance or replacement needs, with a reduced risk of pixel damage.
Thanks to Infinipix®, image quality is perfect in both dimmed and high-brightness mode with consistent Rec. 709 color accuracy. Video artefacts, which typically arise on fast-moving content, are successfully countered and video is displayed without hiccups. Automatic calibration makes sure the entire wall is perfectly uniform at any time.
In order to support the use of Direct LED in critical environments and prevent downtime, redundancy of both power and data can be integrated in the XT0.9-Q. Also, instead of facing sudden complete wall downtime, the users can get a warning so proactive measures can be taken against potential wall failures.
The XT-Q displays are backed by a three-year product warranty period. For extra peace of mind, customers can sign up for an additional EssentialCare maintenance contract with batch compatible modules up to five years.
|Pixels per tile||640×360 (HxV)|
|LED lifetime||70,000h (video – 50% brightness)|
|Hor. viewing angle||155° +/-5° (@50% brightness)|
|Vert. viewing angle||145° +/-5° (@50% brightness)|
|Power consumption||275 W/m²(typ.)
826 W/m² (max.)
|Heat dissipation||939 BTU/hr/m² (typ.)
2,817 BTU/hr/m² (max.)
|Operation power voltage||100-240V / 50-60Hz|
|Operational temperature||-10°C to +40°C / 14°F to 104°F|
|HDR||HLG / HDR10 / HDR10+ supported|
|Concave curvature||Up to 5° inter-tile|
|Convex curvature||90° corner supported|
|Dimensions||609.92 x 343.08 x 71 mm (WxHxD)/ 24.01 x 13.51 x 2.79 inch (WxHxD)|
|Weight / Tile||7.5 kg / 16.53 lbs|
|Module replacement||Automated motorized extraction|
|Seam compensation||Automatic camera-based seam compensation|
|Certifications||CE, UL, FCC class A, RoHS, WEE, REACH|
|Warranty||3 years standard product warranty
EssentialCare maintenance contracts with batch compatible modules up to 5 years
