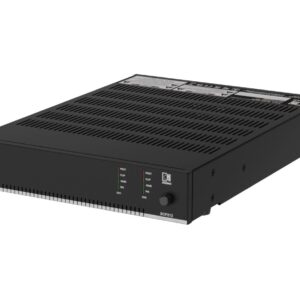

The SCP series is a range of extremely powerful compact dual-channel power amplifiers for commercial use. These half 19” devices can be used in stereo low impedance or 70/100V bridge mode. There are 3 different models to serve a wide range of applications with power ratings that vary between 240W up to 600W in a half 19” rack space housing.
The compact and elegant design of the half 19” rack space enclosure allows for single installation in a 10.5” equipment rack, or side-by-side (two devices) in a 19” equipment rack. Of course, desktop installation or mounting in an equipment rack using the MBS310 series mounting adapters is possible.
You may wonder if so much power in such a small enclosure could cause some heating issues? Not at all, the SCP series is designed in a unique way so that optimal cooling is established, this by passive cooling on the SCP212 in order to improve thermal comfort without the need for additional actions.
A connection to the WP2xx series input wall panels or volume controllers can be made via the RJ45 connector on the back of the SCP. This allows for a cost-effective plug & play solution to extend or introduce brand new input possibilities and control options.
Equipped with a standby mode switch, the SCP series will enter an energy-saving standby mode after a period of inactivity making him unique in the market. This feature together with the overall energy-efficient design makes the SCP meet the high standards of the Energy Star certification.
When you combine the SCP series with a suitable pre-amplifier or wall-mounted input panel you create a relatively powerful and complete solution for background music installations.
- Energy star certified
- Passively cooled housing
- Compact and lightweight design
- Compatible with WP2xx series
- Dual channel power amplifier
- Energy-saving standby mode
|RMS/AES power handling||@ 4 Ω Stereo||2 x 120 W|
|@ 8 Ω Stereo||2 x 60 W|
|@ 70/100 V Bridge||240 W|
|Frequency||Response (± 3 dB)||20 Hz – 20 kHz|
|THD+N (@ 1 kHz)||0.05%|
|Signal / Noise||> 90 dB|
|Indicators||VU LED bar (front)|
|Outputs||Voltage / Impedance||70-100 V / 4 Ω|
|Connector||4-pin Euro Terminal Block (Pitch – 5.08 mm)|
|Inputs||Connector||3-pin Euro Terminal Block (Pitch – 3.81 mm)|
|IEC C14 Connector|
|Type||1 x Remote Volume controller|
|1 x Remote Wall Mixer|
|Stereo – BTL/HPF mode configuration|
|Priority mute contact|
|Supply||100 ~ 240 V AC / 50 ~ 60 Hz|
|Control||Gain control potentiometers (rear)|
|Stereo Low Z & Mono High Z switch|
|Dimensions||217.5 x 44 x 300 mm (W x H x D)|
|Mounting||1/2 19” / 1 HE or tabletop|
|Accessories||Optional||WP2xx Universal wall panel|
|19” Rackmount adapter|
