|Depth||7.25 in / 184.15 mm|
|Height||1.25 in / 31.75 mm|
|Width/Diameter||3.9 in / 99.06 mm|
|Shipping Weight||3.35 lbs / 1.52 kg|
|Carton Height||3 in / 76.2 mm|
|Carton Length||9.5 in / 241.3 mm|
|Carton Width||9 in / 228.6 mm|
|Certifications||CCC, CE, RoHS, UL60065, ETL-C/US, FCC|
|Included Accessories||3-Pin Euroblock, 6-Pin Euroblock, Antenna, IR Receiver, Mounting Hardware, Power Supply|
|Optional Accessories||Replacement Power Supply (AC-PS3240)|European Power Supply (AC-PS3240-EU)|
|Input Impedance||10K Ω Unbalanced|
|Voltage Gain||34 dB|

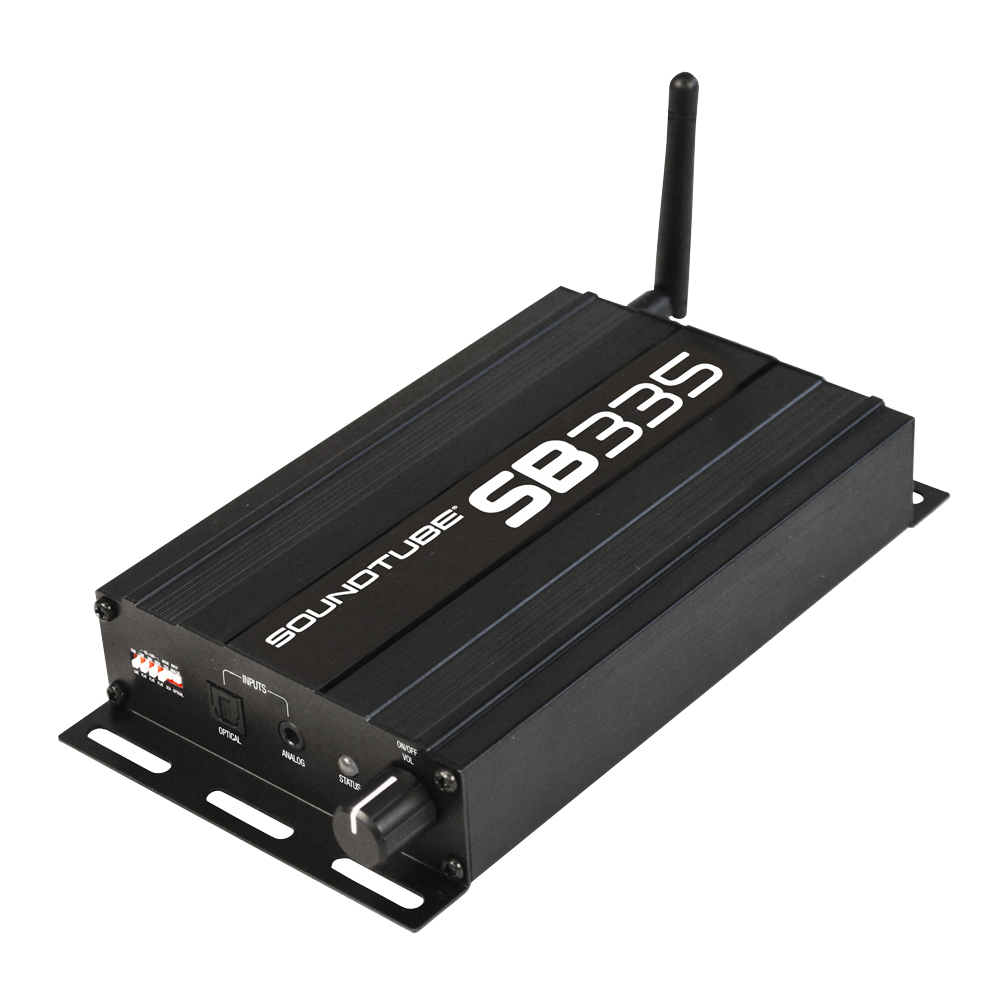

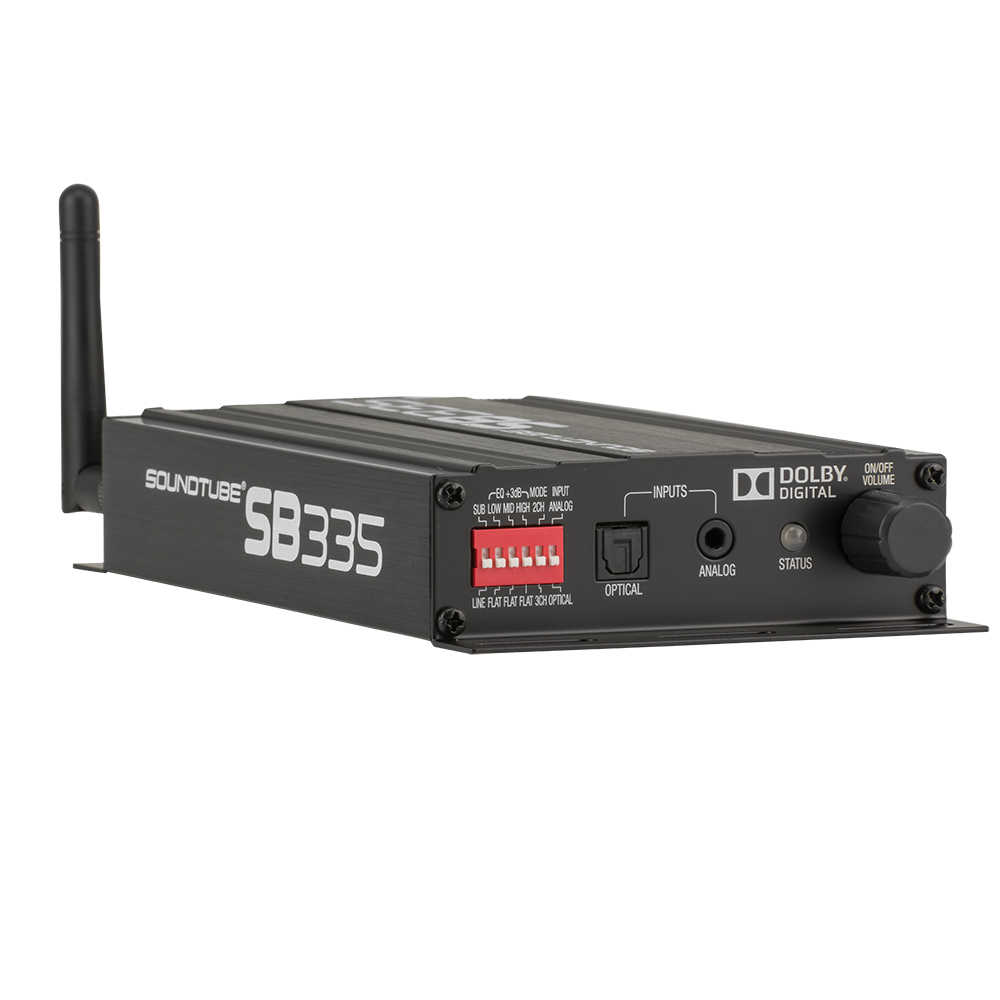

SoundTube Channel Class D Amplifier With Bluetooth Capabilities

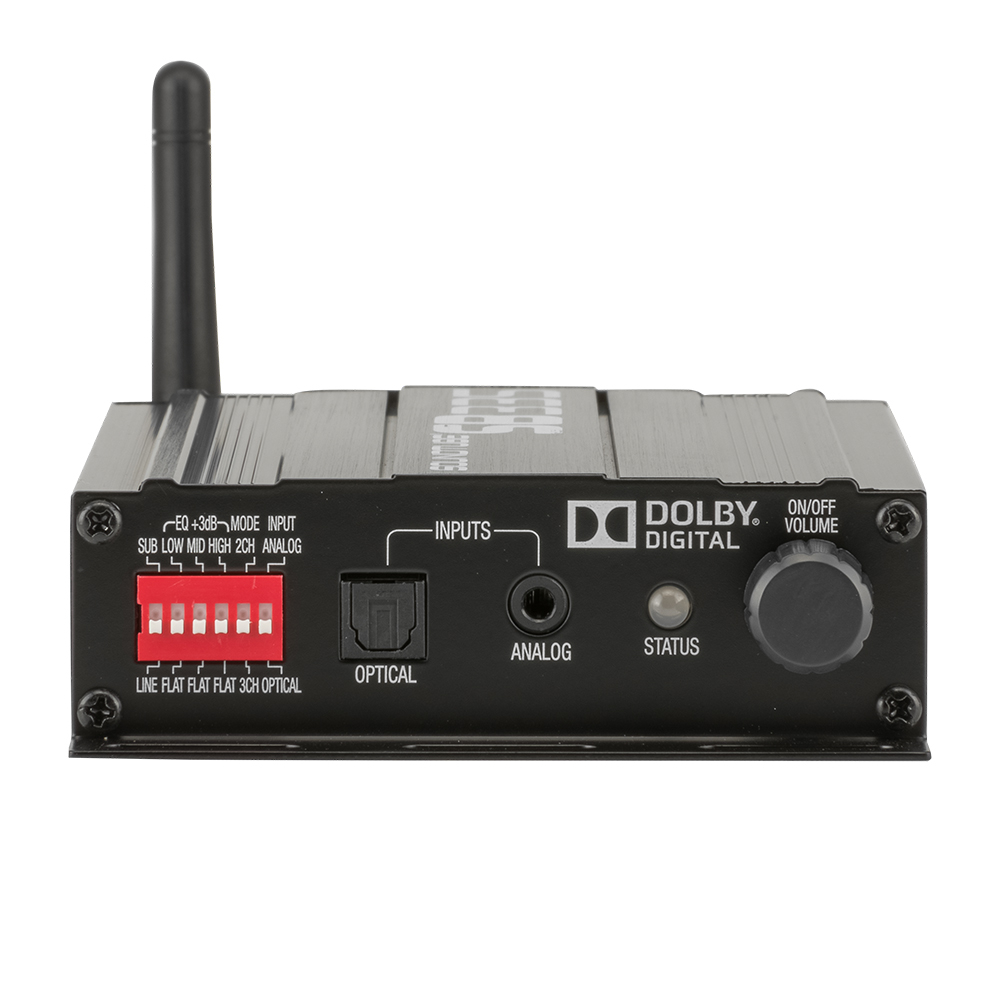

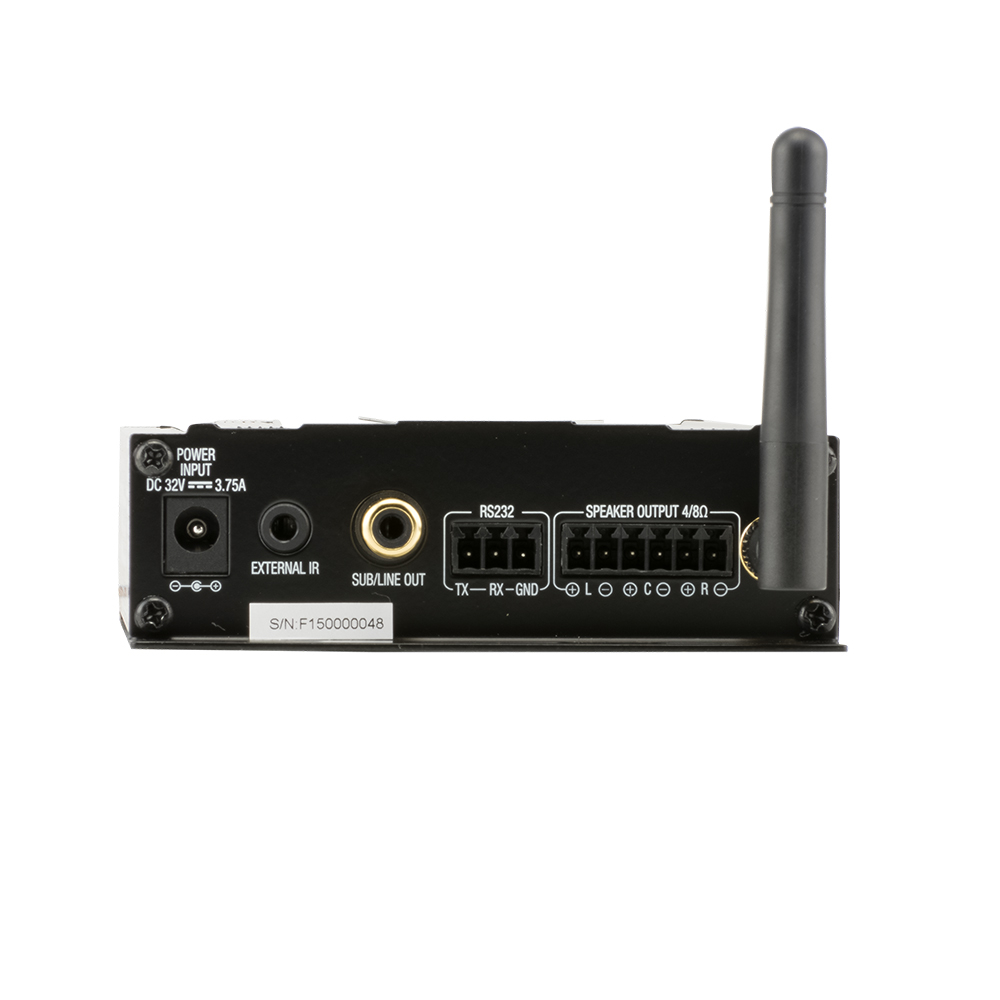

The SB335 is a versatile, small, class D amplifier engineered for use in localized audio applications. Designed for use with SoundTube speakers, other high-fidelity speakers and passive soundbars, the SB335 provides 50 watts per channel into 8 ohms (2 channel operation) or 35 watts per channel into 8 ohms (3 channel operation). Digital and analog inputs are provided, enabling direct connection from most TVs or monitors. Bluetooth® streaming functionality is also featured as a signal option. In addition to the speaker outputs, the SB335 includes a line level subwoofer output. Dolby Digital® decoding is also provided. The SB335 may be controlled via RS232 and will learn IR codes for volume control.
Power Output @ 4 Ohms: 2 Channel 55W or 3 Channel 40W. Power Output @ 8 Ohms: 2 Channel 50W or 3 Channel 35W.
