CALI660
฿10,181.00

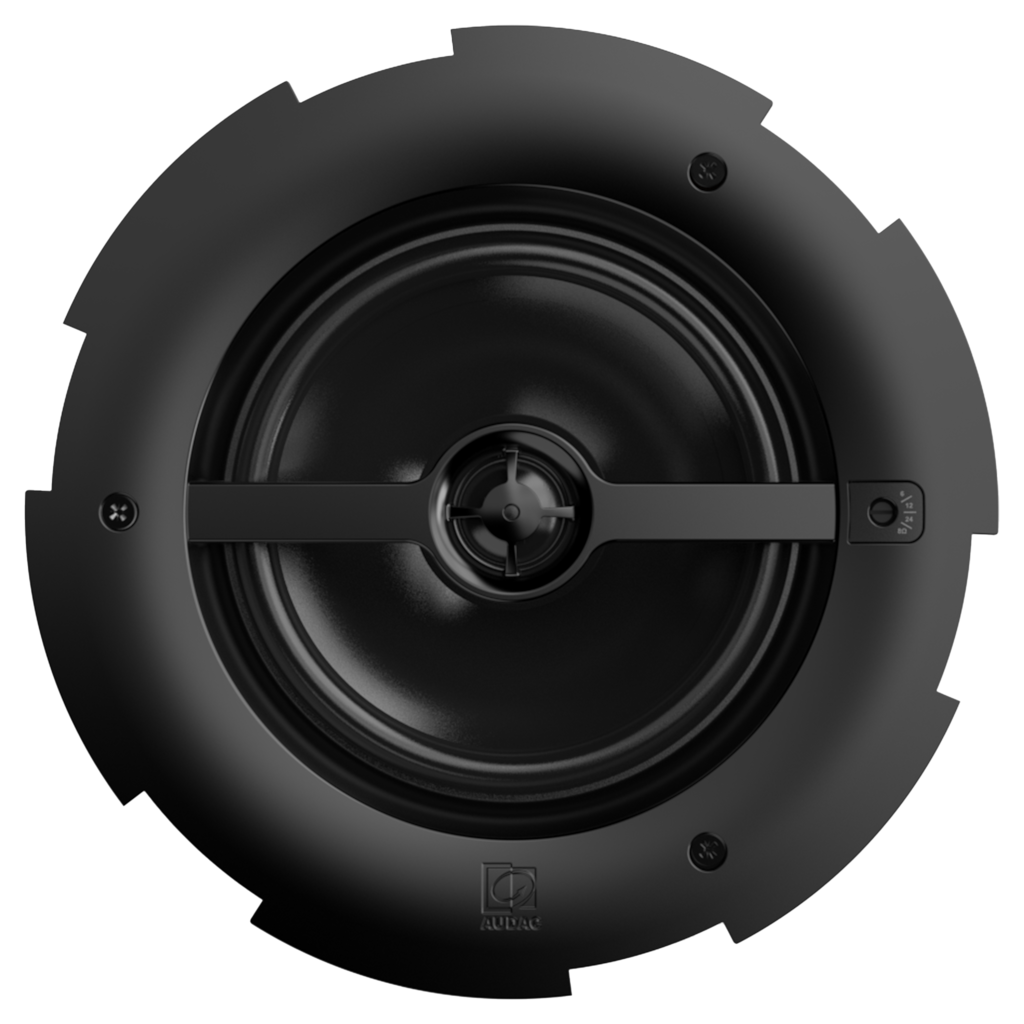

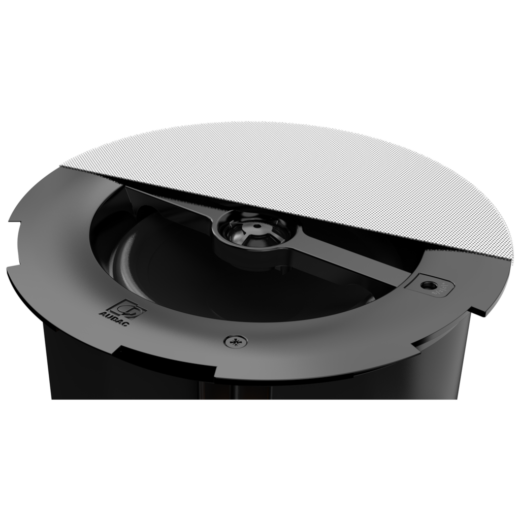

SAFELATCH™ 2-WAY 6.5″ CEILING SPEAKER WITH TWIST-FIX™ GRILL
The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 watt is achieved, while fitted with a rotary switch for tapping of the 70/100V line transformer with tappings for 60W, 30W, 15W and an 8 Ohm bypass connection.
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Peak power handling | 240 W | |||
| Program power handling | 120 W | |||
| RMS/AES power handling | 60 W | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 106 dB | ||
| Sensitivity (1W/1m) | 86 dB | |||
| Dispersion | Conical | 145° | ||
| Frequency | Response (± 3 dB) | 90 Hz – 20 kHz | ||
| Range (-10 dB) | 65 Hz – 20 kHz | |||
| Speaker type | 2-way coaxial | |||
| Connection | Ceramic screw terminal with link through | |||
| Line Transformer Tappings | 1 | 83 Ω – 100 V / Not used – 70 V / 60 W | ||
| 2 | 167 Ω – 100 V / 60 W – 70 V / 30 W | |||
| 3 | 333 Ω – 100 V / 30 W – 70 V / 15 W | |||
| 4 | 667 Ω – 100 V / 15 W – 70 V / 7.5 W | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Cut-out measurement | 220 mm (Ø) | |||
| Dimensions | 242 x 120 mm (Ø x D) | |||
| Built-in depth | 120 mm | |||
| Operating temperature | -20 °C ~ 60 °C | |||
| Construction | ABS and powder coated steel | |||

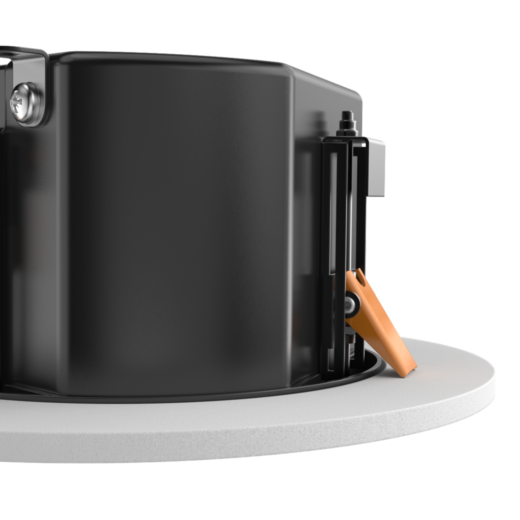

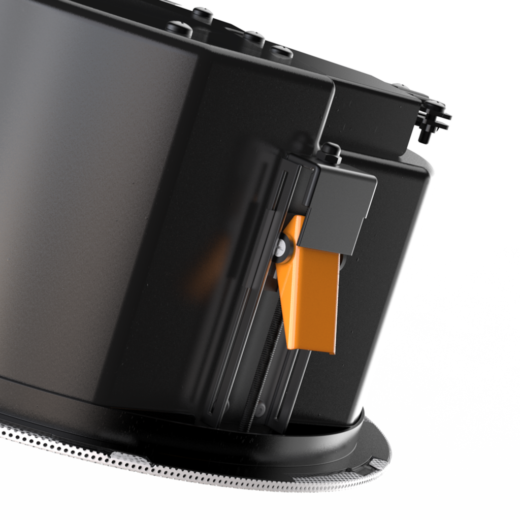

| Mounting | SafeLatch™ mounting system | |||
| Weight | 3.42 kg | |||
