ATEO6M
฿11,110.00
In & outdoor surface mount loudspeaker with CleverMount+™
The ATEOxM series are extraordinary loudspeakers especially designed for fixed installation in- & outdoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.
The ATEO6M is the 6” version, with a 1” dome tweeter and a 6” Mid / Low frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response. It features a stunningly designed and elegant-looking weatherproof ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using the weatherproof CleverMount+™ technology, making the loudspeaker cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity. This design loudspeaker forms the ideal solution for fixed-install indoor applications.
With the improved CleverMount+™ innovation, mounting and connection of the loudspeaker happens in seconds after attaching the wall plate to the desired location. During installation, the wires can easily be connected to the integrated WAGO connectors. For ease of installation & modification, the ATEOxM loudspeakers come with an external power tap selection switch located on the rear of the speaker. Like this, it’s really child’s play to install a large number of loudspeakers in no time.

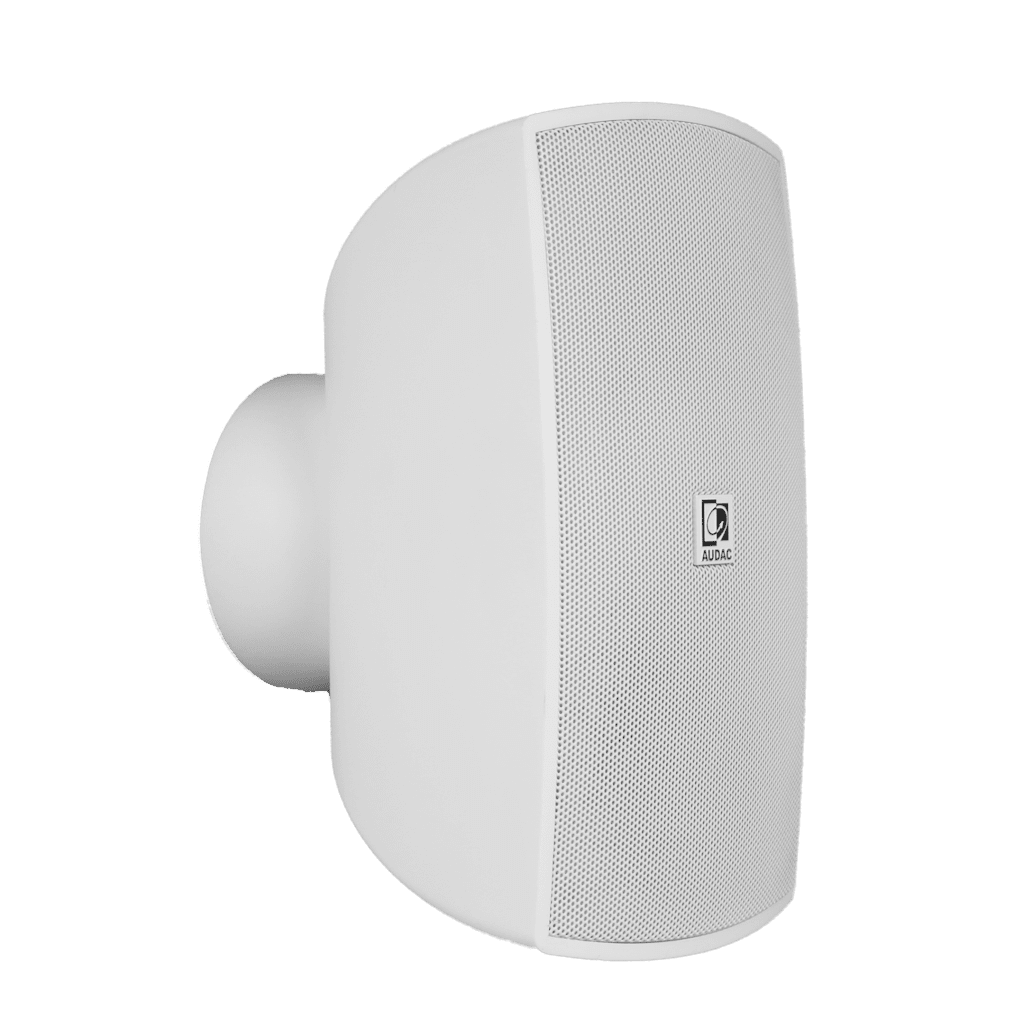

All ATEOxM series speakers are available in black (/B) or white (/W).
- High-end sound experience
- Ultra-flat frequency response
- Weatherproof – IP65 rating
- Salt spray and UV resistant
- Hydrophobic cloth behind aluminum grill
- Multi-tapping 70V / 100V line transformer
- Unique CleverMount+™ mounting system
- Incline and rotatable in any direction
- Stunning designed and elegant looking ABS enclosure
Technical specifications
| ATEO6M/B | Black version – 8Ω and 100V |
| ATEO6M/W | White version – 8Ω and 100V |
| ATEO6DM/B | Black version – 16Ω |
| ATEO6DM/W | White version – 16Ω |
System specifications
| Speaker type | Full range | |
| Peak power handling | 240 W | |
| Program power handling | 120 W | |
| RMS/AES power handling | 60 W | |
| Impedance | 8 Ω (ATEO6M) | |
| 16 Ω (ATEO6DM) | ||
| Incline angle | Left | 30° |
| Right | 30° | |
| Bottom | 30° | |
| Top | 5° | |
| Sensitivity (1W/1m) | 89 dB | |
| Sound Pressure (Max. W/1m) | @ 8 Ω | 106 dB |
| @ 100 V | 105 dB | |
| Frequency | Response (± 3 dB) | 65 Hz – 20 kHz |
| Range (-10 dB) | 55 Hz – 20 kHz | |
| Dispersion | Horizontal | 120° |
| Vertical | 120° | |
| Connectors | 6 x WAGO terminal block connections | |
| Drivers | 1” Dome tweeter | |
| 6” MF / LF Woofer | ||
| Line Transformer Tappings | 1 | 100 Ω – 100 V / Not used – 70 V / 50 W |
| 2 | 200 Ω – 100 V / 50 W – 70 V / 25 W | |
| 3 | 400 Ω – 100 V / 25 W – 70 V / 12.5 W | |
| 4 | 800 Ω – 100 V / 12.5 W – 70 V / 6.25 W | |
| Ingress Protection rating | IP65 | |
Product Features
| Dimensions | 193.1 x 347.5 x 215.2 mm (W x H x D) | |
| Weight | 3.820 kg | |
| Operating temperature | -20 °C ~ 60 °C | |
| Accessories | Included | Allen-key wrench |
| Mounting | Weatherproof CleverMount+™ | |
| Construction | ABS | |
| Front finish | Aluminium grill with hydrophobic cloth | |
| Colours | Black (RAL9005) (ATEO6M/B, ATEO6DM/B) | |
| White (RAL9003) (ATEO6M/W, ATEO6DM/W) | ||
